Flexible Design for Mixing and Stirring Conical Screw Belt Mixer for General Laboratory Equipment

TOPTION INSTRUMENT CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Flexible Design for Mixing and Stirring Conical Screw Belt Mixer for General Laboratory Equipment from wholesalers

    Buy cheap Flexible Design for Mixing and Stirring Conical Screw Belt Mixer for General Laboratory Equipment from wholesalers
    • Buy cheap Flexible Design for Mixing and Stirring Conical Screw Belt Mixer for General Laboratory Equipment from wholesalers

    Flexible Design for Mixing and Stirring Conical Screw Belt Mixer for General Laboratory Equipment

    Ask Lasest Price
    Brand Name : TOPTION
    Model Number : Single cone screw belt mixer
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Flexible Design for Mixing and Stirring Conical Screw Belt Mixer for General Laboratory Equipment

    Describe


    The conical screw belt mixer is a versatile mixing equipment specifically designed for mixing and stirring various powders, granular materials, slurries, or viscous bodies. Its flexible design allows users to configure a liquid spraying system according to their needs and can be designed to operate under various process conditions, such as vacuum, pressure, heating, or cooling, to meet the mixing and stirring requirements of different materials. For example, users can choose from vacuum mixing, pressure mixing, heated mixing, or cooled mixing, depending on their specific needs, to ensure consistent and high-quality mixing results.



    Specification parameters


    ModelFull volume (M³)Loading coefficientMotor power (KW)

    External dimensions(mm)

    Maximum Diameter× Height

    Weight (kg)
    TOPTS-0.060.060.4-0.61.5φ630 x 1451120
    TOPTS-0.10.10.4-0.62.2φ715×1569220
    TOPTS-0.30.30.4-0.62.2φ920 x 1929320
    TOPTS-0.50.50.4-0.64φ1140 x 2322410
    TOPTS-110.4-0.67.5φ1480 x 2869900
    TOPTS-1.51.50.4-0.611φ1633 x 31401200
    TOPTS-220.4-0.611φ1816 x 34891300
    TOPTS-330.4-0.615φ2040×37602400
    TOPTS-440.4-0.618.5φ2250×44252500

    Single Cone Single Screw Mixer Optional Menu


    1) Can be designed for vacuum or pressurized operation.


    2) Can be equipped with hot and cold sandwiches.


    3) The top cover can be designed as a head structure according to the customer's requirement.


    4) Sealing device: standard packing seal, skeleton seal, mechanical seal.


    5) Discharge valve: ball valve, butterfly valve, and gate valve can be chosen.


    6) Liquid spraying device can be configured.


    7) Add a chopping device, that can chop any size of polymer to meet the requirements of the process.



    Features


    1) Cantilevered shaft structure, bearing end not in contact with the material.


    2) Very low clearance between the mixing paddle and vessel wall to prevent the material from sticking.


    3) Standardized mixing drive box to ensure stable operation and low maintenance costs.


    4) Suitable shaft seal construction for each application, with the shaft seal mounted away from the product to ensure that


    the tried and tested CLARE MIXERS standard agitator seals are well utilized.


    5) GMP-compliant equipment design - special geometries of O-rings, high-quality equipment finishes, and elimination of dead


    space.

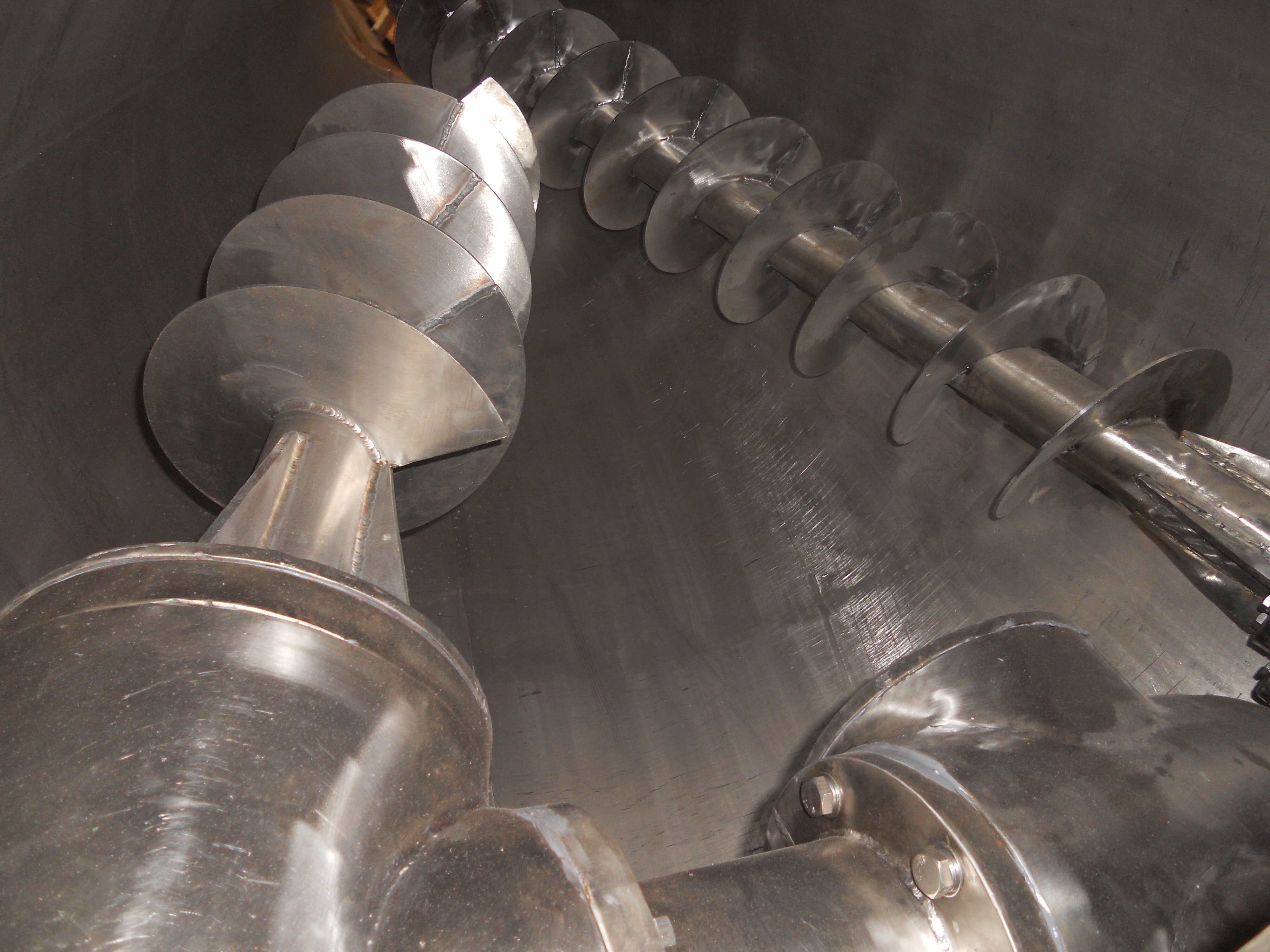

    conical mixer


    Main function


    • The material near the container wall moves upwards while the material in the center moves downwards.
    • Gentle but complete mixing of flowable material, large quantities of material can be mixed in a short time.
    • High standard of homogeneity can be achieved.

    About us


    We at TOPTION are a professional manufacturer of mixing equipment with years of experience and technical expertise. We are dedicated to providing our customers with high-quality Cone Mixer for mixing and blending needs in various industries. Our factory is equipped with advanced manufacturing equipment and technology to meet the individual needs of our customers. Our team consists of experienced engineers and technicians who can provide professional technical support and services. We are confident that our cone mixers can help our customers improve production efficiency and product quality. If you would like to learn more about conical mixer, please contact info@toptionlab.com.


    comapany power

    benefit
