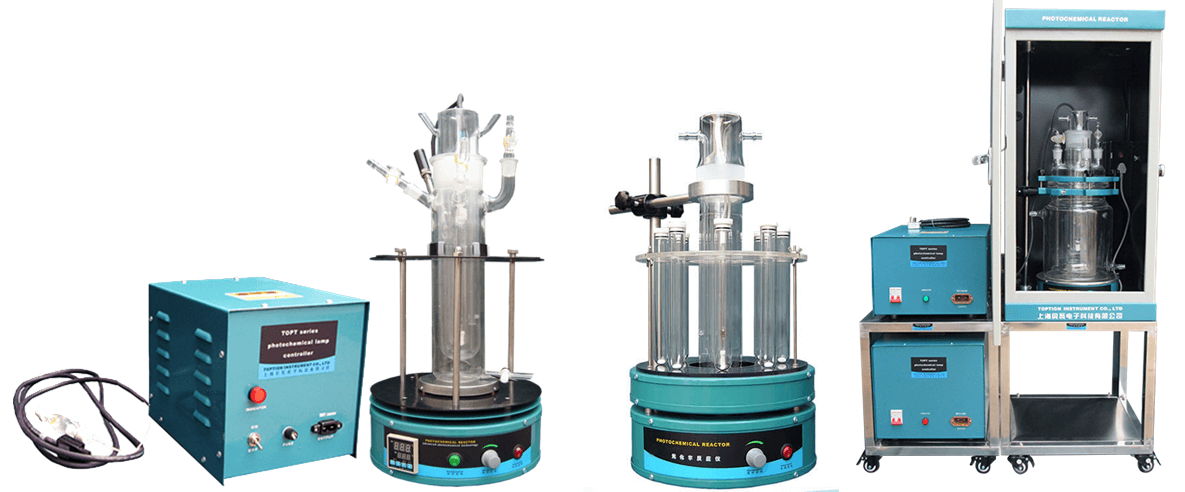

TOPT-I and TOPT-II series photocatalytic reactors are used as liquid-phase photochemical reactors, you could do research on one sample at once, with capacities containing 250ml, 500ml, and 1000ml. There are three opening mouths at the side of the reactor for air inflow, temperature measurement, and sample introduction. The large capacity of this series photochemical reactor could be customized. If you have requirements of “constant temperature”, “take samples” and “air outlet”, please contact us at info@toptionlab.com for professional customization.

• • Items	Quality	Unit	Part Name
    01	1	Set	500W xenon lamp controller
    02	2	pcs	500W xenon lamp
    03	1	pcs	Fully quartz light source double layer protection cold trap(Bottom extension cooling cycle)
    04	1	Set	500ml glass reactor with 5 ports (include glass parts)
    05	1	pcs	Plastic clamp parts of 6 ports glass reactor glass parts
    06	1	Set	Reactor main body protection camera obscura
    07	1	pcs	Power line for protection camera obscura
    08	1	pcs	Product specification
    09	1	pcs	Product warranty card
    10	1	pcs	Product qualification certificate
    11	1	pcs	Product packing list (with product specification)








    Advantages of multipurpose photochemical reactor


    1. Main parts: a variety of light source devices, glass reactors, fully quartz light source protection cold trap, reactor main body protection camera obscura, etc. Could flexible upgrade to TOPTION photolysis of water hydrogen production system.




    2. Could measure reaction kinetics and reaction constant, provide analysis of reaction products and free radical samples, etc.




    3. A professional parallel reaction stirring apparatus could measure the temperature of the material in a reactor and digital display. At the same time could provide magnetic stirring and reactor fixed function.




    4. Optional B-type or D-type multi-port glass reactor, micro circulation system & flowmeter, could realize flow circulating reaction.




    5. TOPT-II configuration – our specialist could recommend the most suitable combination configuration based on your actual needs, and also could provide professional customization according to your actual request.





    Power (W)	Operating Voltage (V)	Effective arc length MM)	Mode of connection Wire
    500W	75.6	220±20	Single-ended leads

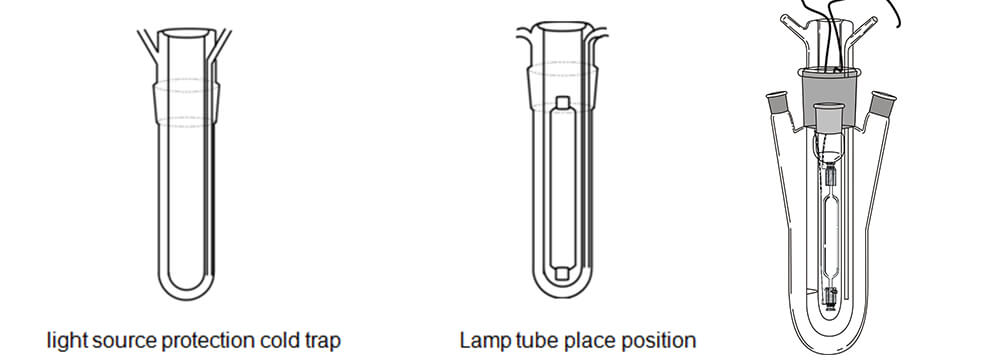

    2. Fully quartz glass light source protection cold trap



• •



    • Packaging list of this type micro/mini-lab photochemical reactor

    No.	Equipment list	TOPT-V
    1	Protecting box(which can prevent ultraviolet ray, but have observation window)	1
    2	UV Lamp control system (Xenon lamp,Metal halide lamp control system are optional)	1
    3	UV Lamp ( xenon lamp, Metal halide lamp are optional)	1
    4	Cold pit of quartz(which is used to reduce the heating of lamp)	1
    5	Water shortage alarm(it will alarm when the water stop flowing, then you can shutoff the power )	1
    6	Stainless steel working platform, bottom with wheels.	1
    7	250ml glass reactor( there are 500ml,1000ml,2000ml,3000ml,5000ml are optional.)	0
    8	30ml quartz test reactor(there are 10ml,50ml,100ml,150ml are optional)	8
    9	Magnetic stirrer with one field	0
    10	Magnetic stirrer with eight magnetic fields (which can do eight samples experiment at the same time)	1
    Optional
    A	Chiller for cooling	yes
    B	Filter(there are UV cut 400nm type and UV through type)	yes
    C	32 quartz test reactors and magnetic stirrer with 32 magnetic fields(can do 32 samples experiments at the same time)	yes
